Rolled PVC Cooling Tower Fills 0.32-1mm Cooling Tower Packing Material
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | RESPECT |
| Certification: | S G S, IOS9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10tons |
|---|---|
| Price: | $1,500.00/tons >=1 tons |
| Packaging Details: | Wood or custom package |
| Supply Ability: | 100 Ton/Tons per Month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Showroom Location: | United States, Thailand |
|---|---|---|---|
| Warranty Of Core Components: | 5 Years | Condition: | New |
| Material: | PVC/PP/CPVC | Warranty: | 4 Years |
| Thickness: | 0.32-1mm | Color: | Black/white/blue |
| Application: | Cooling Tower Parts | Shape: | Rectangle Roll |
| Size: | Customized Size | After Warranty Service: | Video Technical Support |
| Port: | Shanghai | ||
| High Light: | rolled PVC Cooling Tower Fills,0.32mm cooling tower packing material,1mm cooling tower packing material |
||
Product Description
Product Description
cooling tower PVC fill block
2100 Plus OF is a higher performing, low-fouling film fill media with vertically offset flutes manufactured from rigid corrugated
PVC sheets for counterflow cooling tower heat-transfer applications. The fill modules are solvent-welded for maximum strength and
are resistant to UV, rot, fungus, organic / inorganic acids, alkalis, and chemicals normally found in cooling tower water.
Modules are fabricated in 12", 24" and 48” depths, 12” to 24” widths, and in lengths up to 12’-0” in 2’ increments. Sheet spacing
is 21mm and minimum heat transfer area (wetted surface) is 45 ft2/ft3. Standard PVC sheet mil thicknesses are 10 and 15 mil (after
forming). Weight per cubic foot is approximately 1.6 lbs/ft3 for 10-mil packs and approximately 2.4 lbs/ft3 for 15-mil. Custom
dimension modules and mil thicknesses are available upon request.
2100 Plus OF is a higher performing, low-fouling film fill media with vertically offset flutes manufactured from rigid corrugated
PVC sheets for counterflow cooling tower heat-transfer applications. The fill modules are solvent-welded for maximum strength and
are resistant to UV, rot, fungus, organic / inorganic acids, alkalis, and chemicals normally found in cooling tower water.
Modules are fabricated in 12", 24" and 48” depths, 12” to 24” widths, and in lengths up to 12’-0” in 2’ increments. Sheet spacing
is 21mm and minimum heat transfer area (wetted surface) is 45 ft2/ft3. Standard PVC sheet mil thicknesses are 10 and 15 mil (after
forming). Weight per cubic foot is approximately 1.6 lbs/ft3 for 10-mil packs and approximately 2.4 lbs/ft3 for 15-mil. Custom
dimension modules and mil thicknesses are available upon request.

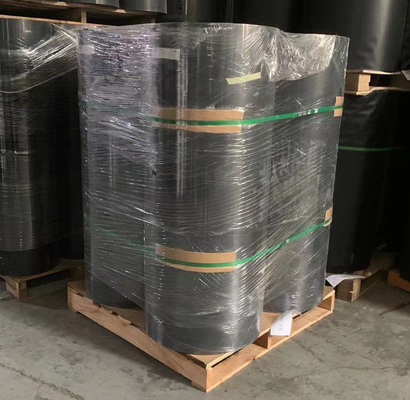

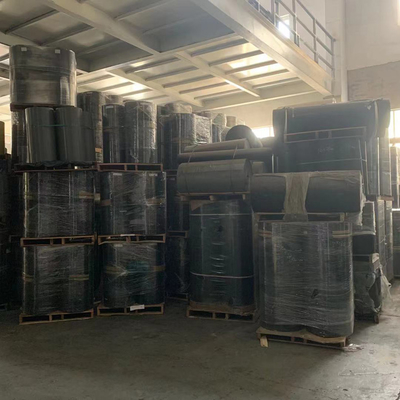

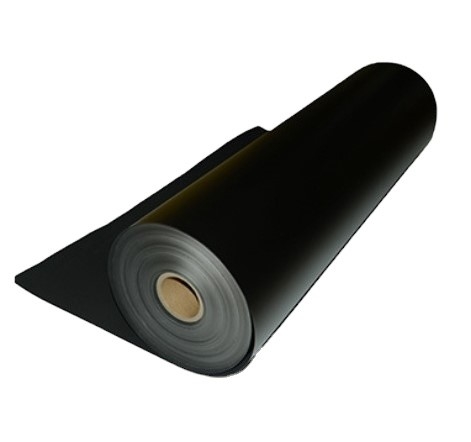

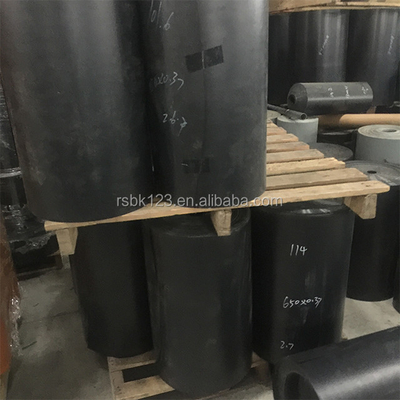

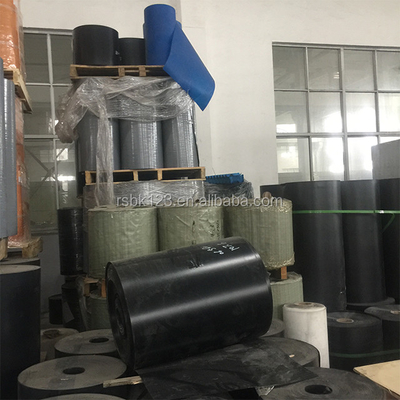

Detailed Images
Custom Service
We accept mold customization, your demand is our real need.
Packing & Delivery
Contact
If you have any require,please contact us at any time!
Want to Know more details about this product
