Counter Flow PVC Mist Eliminator Cross Flow Cooling Tower Fill Replacement
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | XL |
| Certification: | SGS |
| Model Number: | XL-160-45-V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | $8-12.00/square meters |
| Packaging Details: | Wooden,cartons,custom package |
| Delivery Time: | 10 working days |
| Payment Terms: | Western Union, T/T, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 1000m2/per pay |
|
Detail Information |
|||
| Condition: | New | Cooling Type: | Cooling Tower Parts |
|---|---|---|---|
| Material: | PVC,PP,FRP,,CPVC | Warranty: | 1 Year |
| Name: | Drift Eliminator For Removing Entrained Particles In Cooling Tower | Width: | 160,155,145,120mm |
| Product Name: | Drift Eliminator | Wave Height: | 42mm, 45mm |
| Usage: | Cooing Tower | MOQ: | 10 Square Meters |
| Thickness: | 0.6-1.5mm | ||
| High Light: | plate PVC mist eliminator,PVC mist eliminator 120mm,Cross Flow Cooling Tower Fill Replacement |
||
Product Description

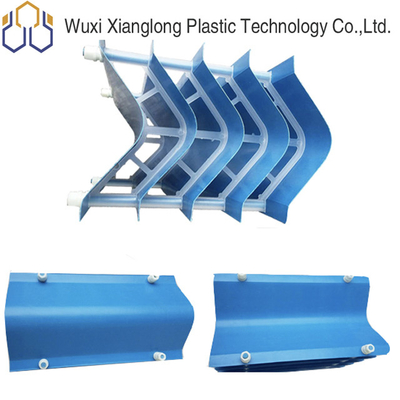

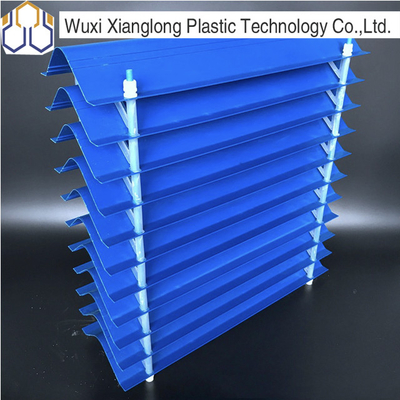

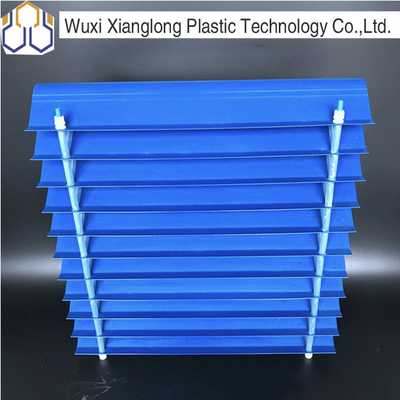

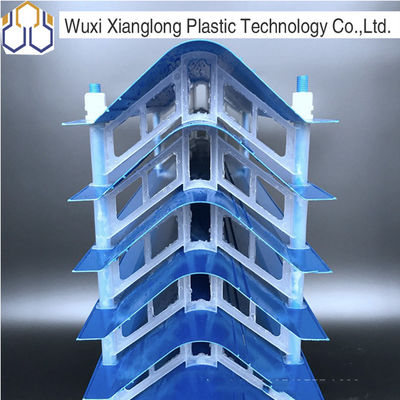

plate PVC drift eliminator demister pad mist eliminator Counter Flow and Cross Flow drift eliminators replacement
Description:
* The main function of the cooling tower water collector is to recover and recycle the water in the hot steam formed by the water sprayed on the surface of the copper pipe or the packing; A device that prevents water mist pollution and freezing to the surrounding environment, saves water and protects the environment.
* 160-45 type high-efficiency and low-resistance reinforced arc-shaped water collector, the cooling tower water collector is made of PVC material, and imported carbon black is added as an additive to the sheet of the water collector, which greatly improves the anti-ultraviolet and anti-ultraviolet properties of the sheet. Anti-aging properties. The cooling tower water collector has the advantages of high water collection power, small airflow resistance, high strength, no deformation, convenient installation and maintenance, long service life, and good flame retardancy. The wave 160-45 type reinforced arc water collector test shows that the water collector's water collecting power can reach less than 0.001% of the floating water loss according to the circulating water volume, which is only one-tenth of the national standard. advanced level. Under the condition of 2.8m/s wind speed, the loss of ventilation resistance is about 0.8mmH2O, which is lower than that of foreign products.
* Product features: The cooling tower water collector has the advantages of high water collection efficiency, small airflow resistance, high strength, no deformation, convenient installation and maintenance, long service life, and good flame retardancy.
At present, PVC water collectors have been widely used in various domestic office cooling towers, thermal power plants, steel plants, petrochemical plants and other industrial sectors for mechanical ventilation and natural ventilation cooling towers. Practice has proved that the design of the water collector is advanced and effective. significant
Specifications:| Tech Date | |
| Sheet Width(mm) | 160-165mm |
| Sheet Length | 1000mm/2000mm/customized |
| Thickness | 0.6-1.5mm/customized |
| Sheet Spacing | 42-45mm |
| Color | blue/black |
Related Blade Drift Eliminator
Advantages:
2. With sufficient assembly rigidity, its geometric shape should remain stable under normal operating conditions to ensure that the cooling tower water collector maintains a stable resistance operation effect.
3. It has the performance of non-deformation.
4. The cooling tower water collector assembly block has sufficient rigidity and strength.
5. Simple structure, easy to process and durable.
6. It has the advantages of water collection efficiency, small airflow resistance, strength, no deformation, convenient installation and maintenance, long service life, and good flame retardancy.
PACKING AND DELIVERY
Q: Are you trading company or manufacturer ?
A: We are manufacturer with our own factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge. And the freight cost will on the buyer's side.
Q: What is your terms of payment ?
A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance ,balance before shipment.
If you have other questions, please feel free to contact us as below:
