750X2000mm Rigid PVC Cooling Tower Fills CF750 Fill Media Cooling Tower
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | XL |
| Certification: | SGS |
| Model Number: | XL-750-LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | $1.2-2/square meters |
| Packaging Details: | Wooden,cartons,custom package |
| Delivery Time: | 10 working days |
| Payment Terms: | Western Union, T/T, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 1000m2/per pay |
|
Detail Information |
|||
| Condition: | New | Cooling Type: | Cooling Tower Parts |
|---|---|---|---|
| Material: | PVC,PP,CPVC | Warranty: | 1 Year |
| Name: | Liangchi 750*2000mm Rigid PVC Sheet Black PVC Film Fill For Cooling Tower Fill CF750 | Width*Length: | 750*800/750*2000/750*1600 |
| Wave Height: | 19-20mm | Usage: | Cooing Tower |
| MOQ: | 10 Square Meters | Thickness: | 0.32-0.6mm |
| High Light: | Rigid pvc cooling tower fills xianglong,pvc cooling tower fills 20mm xianglong,CF750 fill media cooling tower xianglong |
||
Product Description

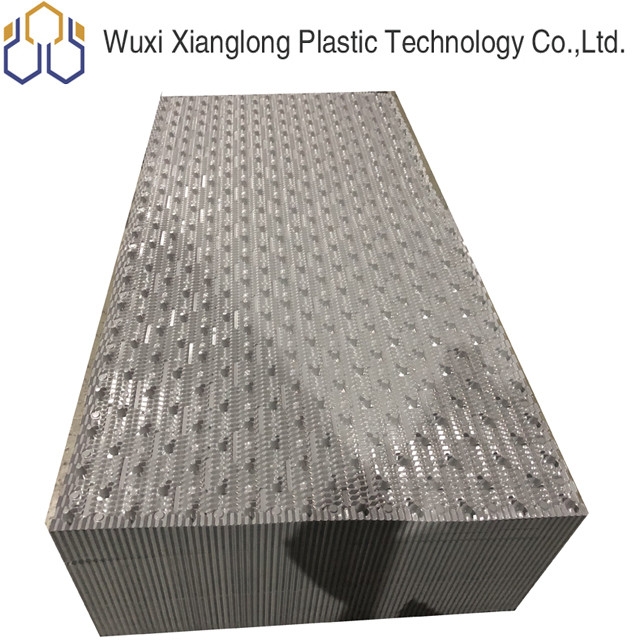

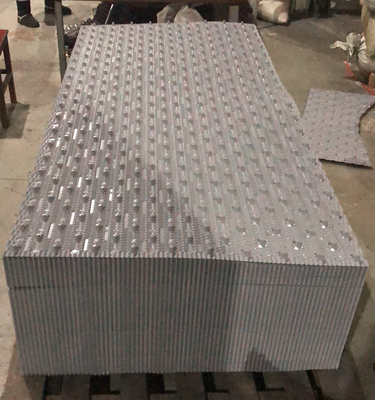

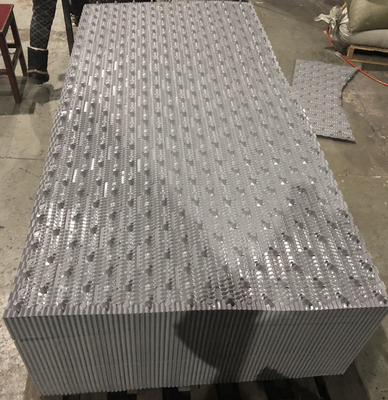

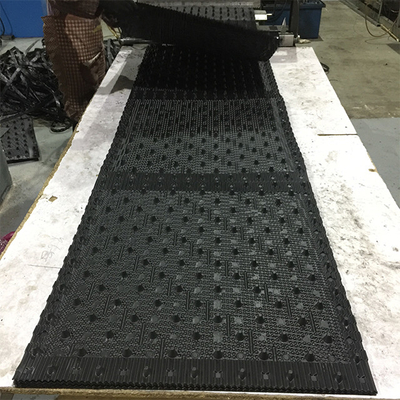

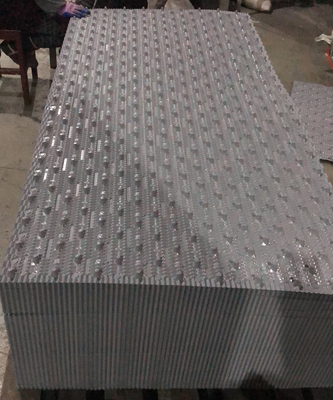

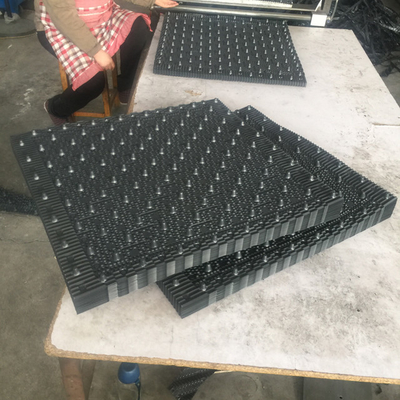

Liangchi 750*2000mm Rigid PVC Sheet Black PVC Film Fill for Cooling Tower Fill CF750
Description:
Cooling tower infill is one of the most important components for exchange of gas and water in cooling tower.
It is the major parts to improve the efficiency of cooling tower and make sure the economy and safe operation. With the development of the plastic industry,countercurrent tower drench water plastic packing "S" shape ladder wave, inclined corrugated fills, which has the heat dissipation, durable, good performance, ventilated small.
resistance, based on the easy and other advantages. It is widely used in different types of large, medium, small, cooling tower.
Specifications:| Tech Date | |
| Sheet Width(mm) | 750mm |
| Sheet Length | 750*800/750*1600/750*2000mm |
| Thickness | 0.32-0.6mm/customized |
| Sheet Spacing | 19-20mm |
| Color | grey/white/black |
| Material | PP/PVC/CPVC |

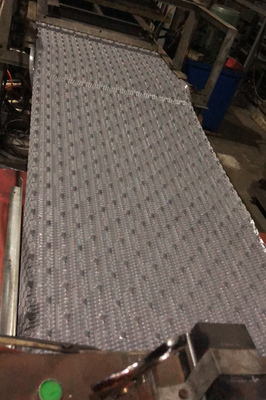

The performance of cooling tower packing directly affects the cooling effect of cooling tower, which is the core part of the whole cooling cycle system. This product introduces new automatic plastic vacuum forming machine.
Heat dissipation material adopt thin film design, in order to increase the heat dissipation area and reduce the wind resistance heat dissipation material surface exploring point corrugated guide trough, uniform arrangement direction down and consider the Angle of the air flow to drive the water film, so that the drain caustic heat dissipation along the surface of the heat dissipation material according to a certain flow rate down more effective effect. Heat dissipation material adopts senior PVC plastic material and is made by vacuum forming.

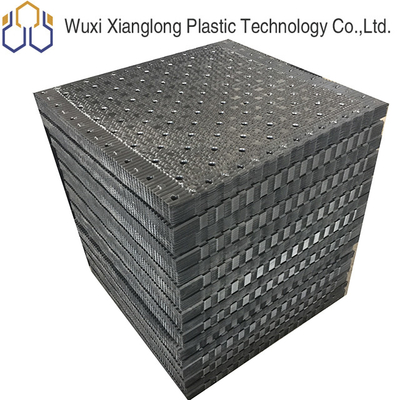

The cooling material is laminated as a whole group, with the same distance between each cooling material to facilitate air flow through. To ensure the best cooling effect.
Related Cooling Tower Film Fill
Advantages:
Liangji Cooling Tower Fill Suspended Liangji Packing Size 800*750
*It has the characteristics of light weight, high strength, good flame retardant performance, corrosion resistance, advanced design, small ventilation resistance, strong hydrophilicity, and large contact area.
*Geometric deformation does not occur under the conditions of 60℃-35℃.
*It will not be broken or brittle under the design low temperature conditions.
*Under normal operation and use conditions, its life is not less than 20a.
*High thermal performance, reaching the above, far exceeding the requirements of 90% of the national standard;
*The floating water rate is lower than 0.001% of the circulating water volume, and it adopts the three-in-one design of its own water collector and air inlet louver; the filler is made of flame retardant PVC vacuum plastic,
*Has good flame retardant properties.
PACKING AND DELIVERY
About US
Q: Are you trading company or manufacturer ?
A: We are manufacturer with our own factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge. And the freight cost will on the buyer's side.
Q: What is your terms of payment ?
A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance ,balance before shipment.
