Spiral Target Crossflow Cooling Tower Nozzles Cooling Tower Sprinkler Head
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | XL |
| Certification: | SGS |
| Model Number: | XL-ML-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | $0.6-1/pcs |
| Packaging Details: | Wooden,cartons,custom package |
| Delivery Time: | 10 working days |
| Payment Terms: | Western Union, T/T, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 1000m2/per pay |
|
Detail Information |
|||
| Cooling Type: | Cooling Tower Parts | Material: | PVC,PP,CPVC |
|---|---|---|---|
| Warranty: | 1 Year | Name: | Spiral Target Crossflow Nozzle, Sprinkler Head For Cooling Tower |
| Usage: | Cooing Tower | MOQ: | 10 Square Meters |
| Thickness: | 0.32-0.6mm | Dia: | 13/16/18/20/22mm |
| Highlight: | Crossflow Cooling Tower Nozzles,Spiral Target Cooling Tower Nozzles,cooling tower sprinkler head |
||
Product Description

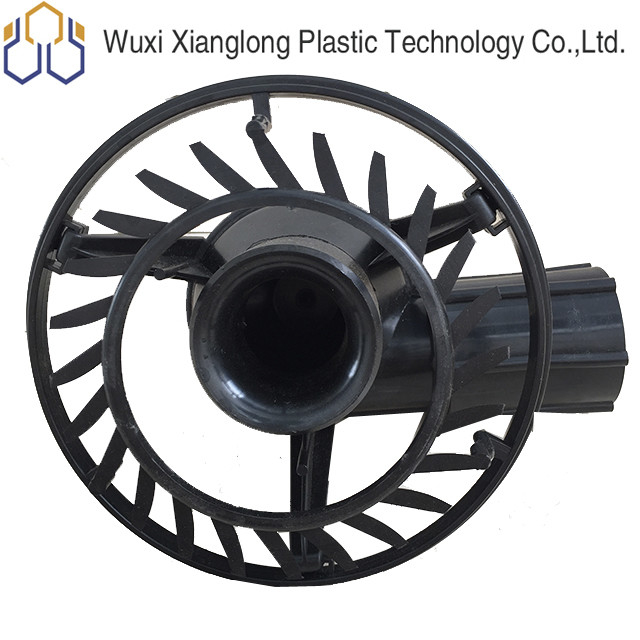

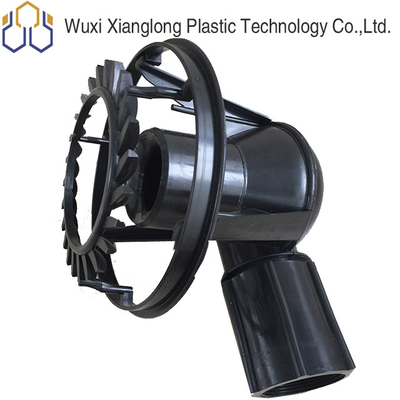

Spiral Target Crossflow Nozzle, Sprinkler head for cooling tower
Cooling Tower Nozzle Working Principles
* Working fluid flowing inside of the coils, which is enwrapped by spray water on the outside. The heat of water
is transferred by coil and become the saturated vapor when meet the water and air. The heat is exhausted out
of the tower by the tower by the top fan; water is collected back to the bottom tank and circulates continuously.
* The spray water is cooled down via PVC radiation fin in the process of circulation, and flows the same direction
with the fresh wind. The coil mainly takes sensible heat travel style. The most benefit of this style is can avoid
scale formation on the outside of the coil.And this will apply especially to dealing with high temperature
fluid (e.g. 60°C) or the fluid need big temperature difference (e.g. 60°C to 35°C).

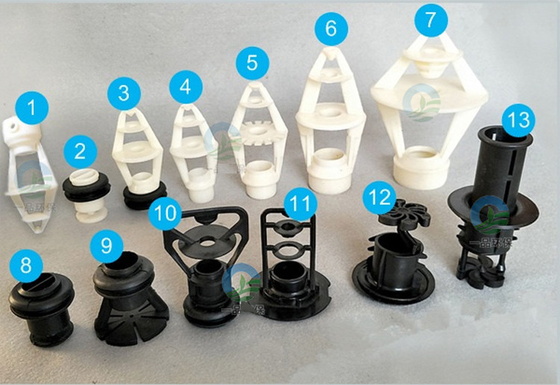

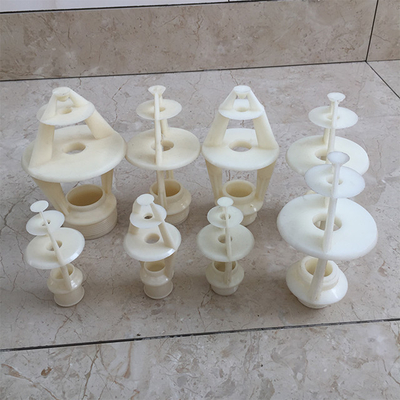

Cooling Tower Nozzle Specifications
- Spray Nozzle, A, AA, and Pyramid Nozzles are grommeted for easy inspection and removal
- XF nozzles are gravity flow and can easily be inspected and replaced while unit is in operation
- Kits are available to install 360™ Spray Nozzles in other manufacturers coil products
- Patented design for pressurized or gravity-feed systems guarantees optimum thermal performance
- Large orifice means non-clogging performance for effective wetting of the heat-transfer surface
- Multiple sizes are available to accommodate all system flow rates
- AVAILABILITY: 1/4” through 1 1/8” orifice for properly metered flow.
Related Cooling Tower Film Fill
Cooling Tower Nozzle Applications
1. Ease of Maintenance
- Easy snap in/out grommet design
- Large non-clog orifice
2. Robust, durable construction
3. Universal alignment
4. Anti-scale design
5. No moving parts
6. Eliminates dry spots inherent in other designs
