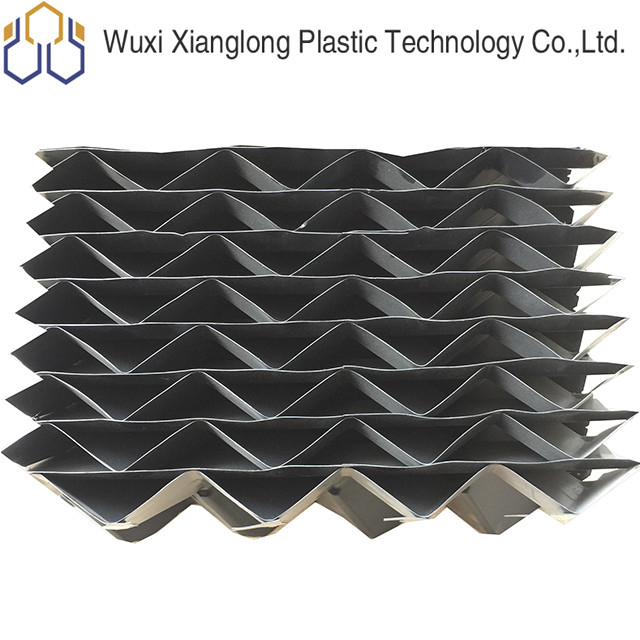

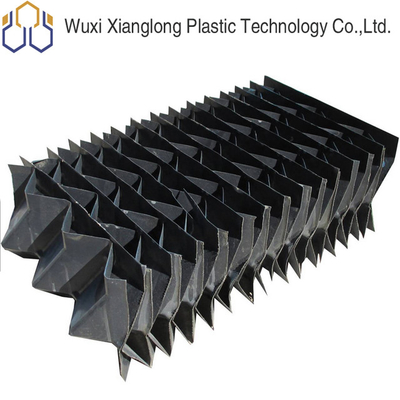

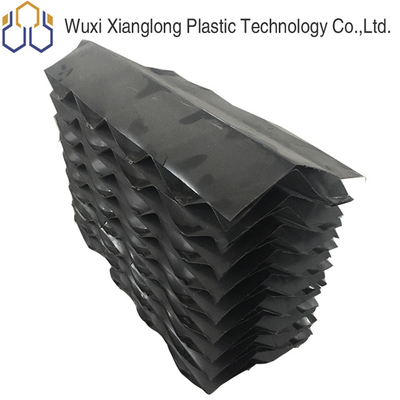

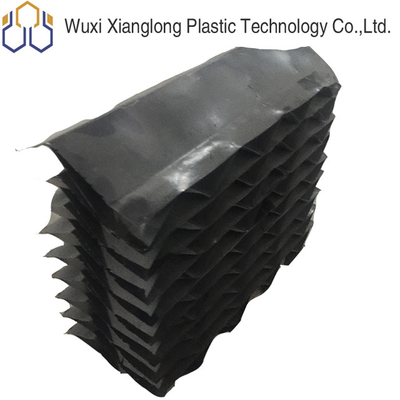

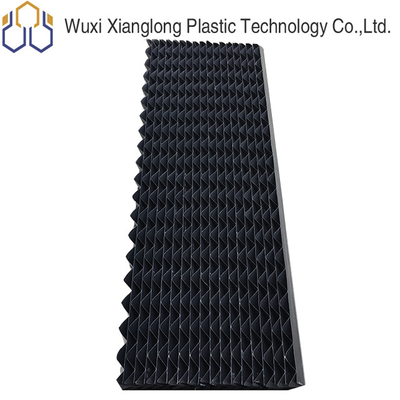

PVC Louver Cooling Tower Drift Eliminator 30mm PVC Mist Eliminator
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | XL |
| Certification: | SGS |
| Model Number: | XL-ML-145MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | $20-30/square meters |
| Packaging Details: | Wooden,cartons,custom package |
| Delivery Time: | 10 working days |
| Payment Terms: | Western Union, T/T, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 1000m2/per pay |
|
Detail Information |
|||
| Name: | PVC Louver For Cooling Tower Drift Eliminator PVC Drift Mist Eliminators For Cooling Tower | Cooling Type: | Cooling Tower Parts |
|---|---|---|---|
| Material: | PVC,PP, | Warranty: | 1 Year |
| Width: | 140-145mm | Product Name: | Drift Eliminator |
| Sheet Spacing: | 30mm | Usage: | Cooling Tower |
| MOQ: | 10 Square Meters | Thickness: | 0.6mm |
| Highlight: | PVC Louver Cooling Tower Drift Eliminator,Cooling Tower Drift Eliminator 30mm,30mm PVC Mist Eliminator |
||
Product Description
PVC Louver For Cooling Tower Drift Eliminator PVC Drift Mist eliminators For Cooling Tower
Description:
Cooling tower drift eliminators and heavy duty/dura drift eliminators are designed to remove droplets of water from the air and minimize loss of process water. Drift eliminators cause the droplets and air to change direction suddenly. This process causes the water to become separated from the air and put back into the cooling tower. Drift eliminators limit the amount of circulating water emitting from the tower’s exhaust.
In every cooling tower, there is evaporative water loss to the environment. When liquid water becomes entrained in the leaving air stream, however, drift eliminators are used to minimize the amount of water carried out of the cooling tower with the exhaust air.
These water droplets carry the same concentration of impurities as are typically found in cooling towers. Drift eliminators are designed to prevent the droplets and mist from escaping by capturing the droplets and sending them back into the tower. Efficient drift eliminators will keep drift losses to less than .001% of the recirculating water flow rate.
Specifications:
| Tech Date | |
| Sheet Width(mm) | 140-145mm |
| Sheet Length | 1220mm/1000mm/customized |
| Thickness | 0.6mm/customized |
| Sheet Spacing | 30mm |
| Color | black |
Product process
Related Blade Drift Eliminator
Advantages:
• Reduced environmental impact
• Elimination of water drop issues
• No water drops come out of the system
• Water recovery
• Energy saving
• Increased amount of drops that are deposited in collection areas
• Very low head losses
• High mechanical resistance thanks to the PVC
• Easy maintenance
• Panels are intelligently positioned thanks to their lightness
• Resistant against almost all chemical and biological agents
