Water Cooling Evaporative Condenser Cooling Tower Unit
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | RESPECT |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/set |
|---|---|
| Price: | $5,000.00 - $15,000.00/sets |
| Packaging Details: | shipped by container or wooden case |
| Delivery Time: | 10 working days |
| Supply Ability: | 30 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Manufacturing Plant, Home Use, Construction Works , Advertising Company | Cooling Type: | Counter Flow |
|---|---|---|---|
| Material: | Metal | Voltage: | 380V/50Hz |
| Dimension(L*W*H): | Depend On Your Demand | Warranty: | 3 Years |
| Key Selling Points: | Sustainable | Name: | Closed Cooling Tower |
| Production Time: | Typically 3~4 Weeks | Sprazy Nozzle Material: | ABS |
| Cooling Tower Fill: | Depend On Your Cooling Tower | Port: | Shanghai Port |
| Highlight: | water cooling evaporative condenser cooling tower,Counter Flow evaporative condensing unit |
||
Product Description

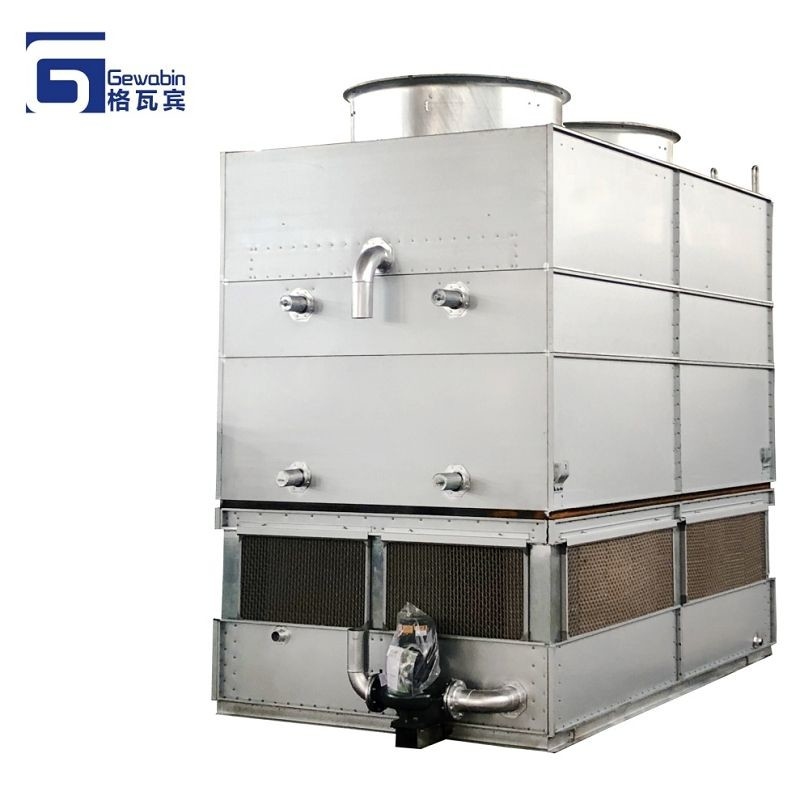

Water Cooling Evaporative Condenser
Introduction
Evaporative Condenser for water cooling, The possibilities for choosing appropriate heat exchangers are severely limited when there is a particularly high power need and relatively little installation area.
In accordance with established industry quality standards, Gewabin uses the highest quality raw materials and cutting-edge technology in the manufacturing of its evaporative condensers.
| pecifications of Water-cooling Evaporative Condenser | |||
| Heat refection under Normal operating condition | kw | 2050 | |
| Propeller fan | Qty. | set | 2 |
| blowing rate | L/S | 2*16.7 | |
| Power | kg | 2*4.0 | |
| Water circulating pump | Water volume | m3/h | 170 |
| Power | kw | 4.0 | |
| Weight | shipping | kg | 7815 |
| Operating | kg | 11250 | |
| Refrigerant charge | kg | 221 | |
Working principle
Water poured upon a high-temperature gaseous refrigerant in a pipe coil causes heat exchange. During the procedure, the high-temperature gaseous refrigerant becomes liquid.
The heated spray water vapour is removed by the fresh air as it ascends from the bottom to the top of the condenser. The water fender board will stop the vapour water as it runs through pipe coils into the collection basin and then back into the circulation system. The water level regulator can be used to replenish the lost water.
Production Advantage
Water Cooling Evaporative Condensers are commonly used in various industrial and commercial applications to cool down water and remove excess heat generated by processes or equipment. These towers are designed to efficiently transfer heat from the water to the surrounding air through evaporation, ensuring optimal cooling and maintaining the desired temperature.
Water Cooling Evaporative Condensers offer several advantages, including their compact design, ease of installation, and efficient heat transfer capabilities. They are a cost-effective and reliable solution for various applications that require effective cooling and temperature control.
Application Case
